Hearing Aid

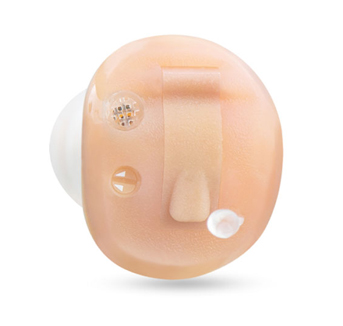

Fugue 12 Custom Fit IIC Hearing Aids With Computer Fitting

  • 12 Channel
  • 16 Bands
  • 3 Program

  • Description
  • Features
  • Step for Wearing
  • Technical Specifications
This is Fugue 12 Custom Fit IIC Hearing Aids With Computer Fitting. Elite plateform technilogy, based on multi-core computing chips with high speed DSP signal processing, with advanced algortithmic methods. Innovative audio signal processing functions, perfect bionic human hearing perception of sound, develop a new chapter in hearing aids technology with outstanding sound quality, intelligent functions to show the future of hearing aid technology. Eilte plateform technology which includes multi-channel signal noise reduction processing and 32 channel DDRC technology, the 5th-generation  intelligent multimode feedback sysytem. Elite lets people enjoy outstanding sound quality and hearing comfortably. The intelligent and user-friendly features demonstrate the exclusive feeling.

Intelligent Multi-Core Digital Processing System
12 Channel
16 Band
12 Multi-channels Expansion
Normal CASA Noise Reduction Manager
New 5th Generation Intelligent Multi-Modal Feedback Handling System
3 Program
High Precision Target Algorithm : 6 types
Fitting Record Sharing

Step for Wearing Fugue 12 IIC Hearing Aids:
Hold your hearing aids by your thumb and forefinger and the pull wire is at below. Use tip of your forefinger to softly push the hearing aids into your ear until it feels comfortably in your canal. Use another hand to pull the outer ear backwards and upwards, making it easier to wear the hearing aid. And then use the forefinger to move up and down gently, and the mouth open/close for several times to check if user wear well.

Remove IIC hearing aid
Pinch the wire with your thumb and forefinger and gently pull it out of the ear canal.

1. The mouth open/close when removing hearing aid.
2. It is the best to wear and remove the hearing aid on soft surface such as a sofa or bed.

Fugue 12 IIC Hearing Aids Technical Specifications:
Technical Specifications CIC IIC ITC HSE
MAX OSPL90(dBSPL) 112 110 116 116
HFA OSPL90(dBSPL) 108 106 110 110
Peak Gain(dB) 46 40 51 51
HFA FOG(dB) 41 35 44 44
Frequency Range F1,F2 F1≤200Hz, F1≤200Hz, F1≤200Hz, F1≤200Hz,
F2≥6330Hz F2≥6500Hz F2≥6250Hz  F2≥6250Hz
THD at 500Hz 0.70% 0.90% 0.20% 0.20%
THD at 800Hz 0.80% 0.90% 0.40% 0.40%
THD at 1600Hz 1.20% 1.20% 0.30% 0.30%
Eq.Input Noise Level 24.9 25 25.3 25.3
Battery Current Drain 0.9 0.9 0.83 0.83
Attack Time 2 2 2 2
Release Time 46 46 52 52
